SPECIFICATIONS

Battery: 18V/10AH

Brand Name: CZYEBIKE

Charging Time: 5h

Design: Brushless

High-concerned chemical: None

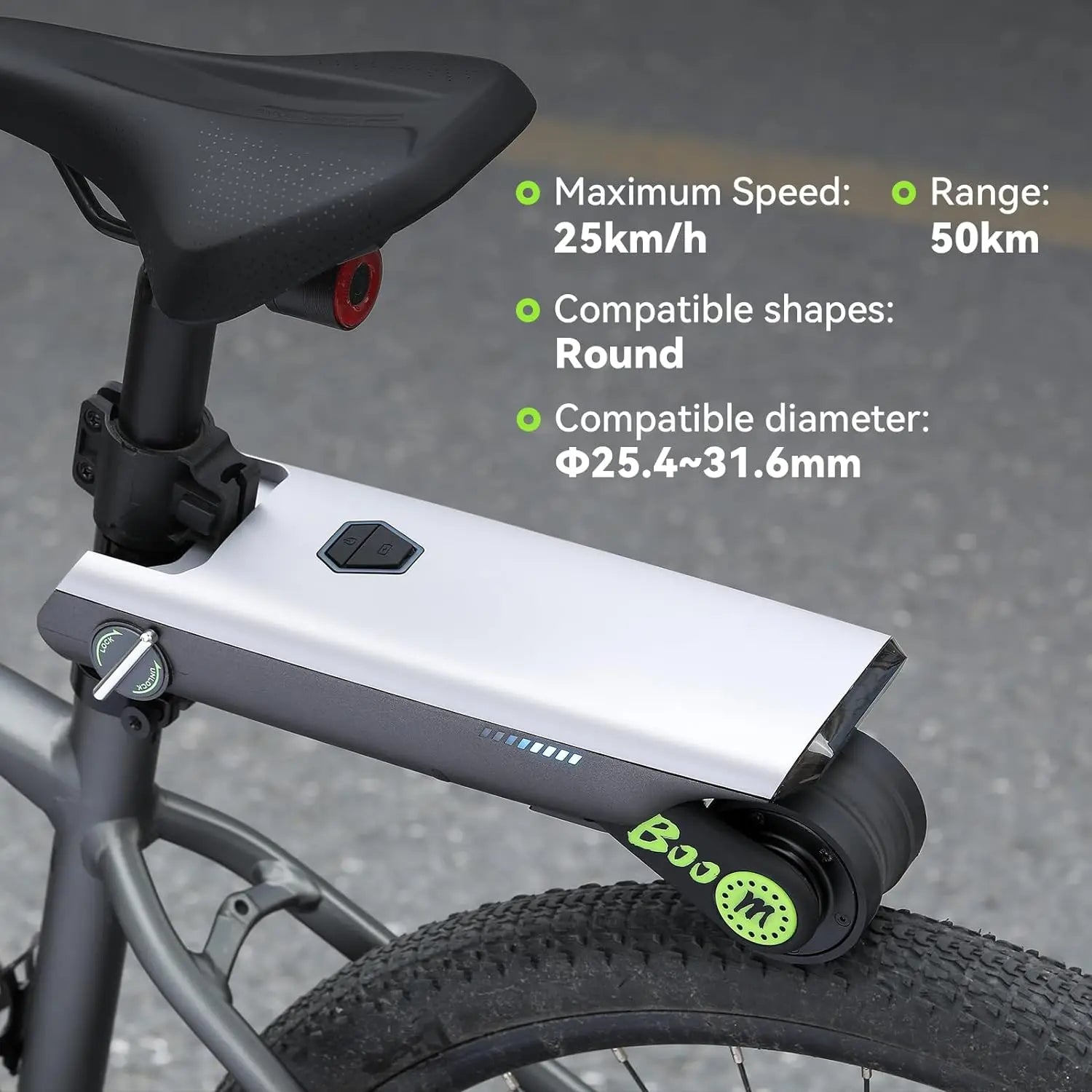

Maximum Speed: 15.5Mph (25km/h)

Motor: 200W

Mounting Position: Side Hung Motor

Net Weight: 4.4lb

Origin: Mainland China

Range: 31Miles (full charge, HALF assistance, actual range may vary based on terrain and load)

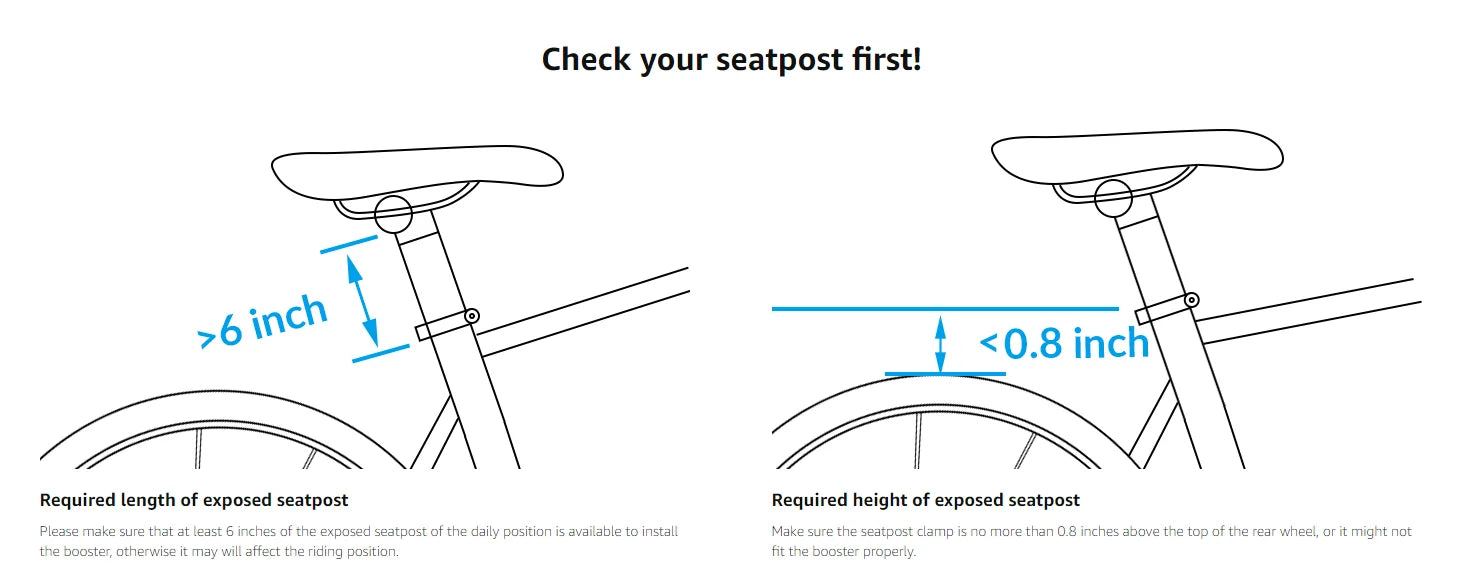

Seat Post Compatible Diameter: 25.4~31.6mm

Seat Post Compatible Shapes: Round

Suitable Road Surfaces: City paved roads, gravel roads

Suitable Seat Post Sizes: 25.4/27.2/28.6/30.4/30.8/31.6 mm

Suitable Tire Widths: Mountain Bike: 1.5/1.75 /1.95 /2.15 inch Road Bike: 25C/28C/35C /38C

Voltage: 12V

Wattage: 201 - 300w

FAQ：

Q1:Do you accept returns?

A1:In the case of initial defects, we will respond by exchanging the product.We do not respond to damage or failure of the product caused by the customer.

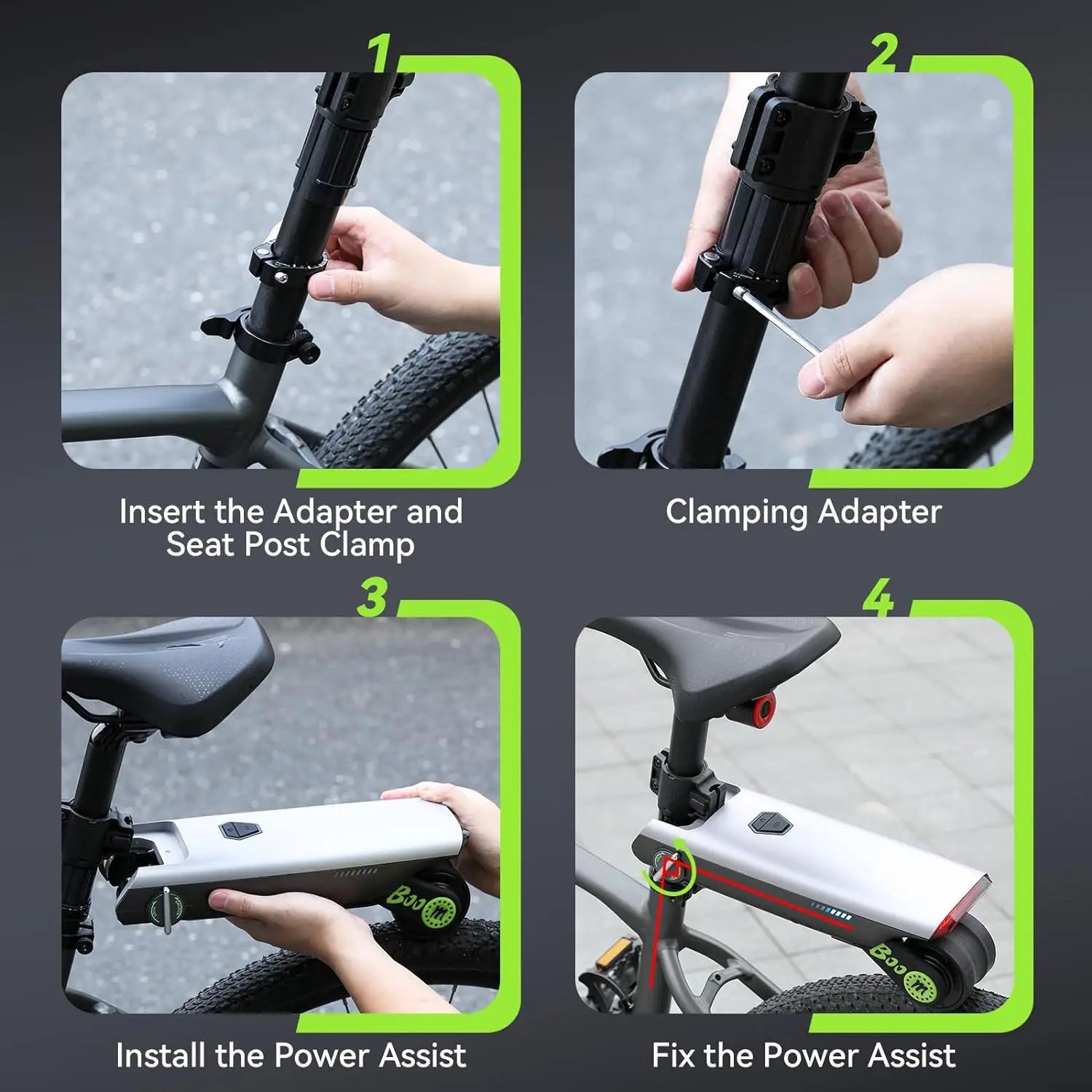

Q2: Is it difficult to install the bike assist device?

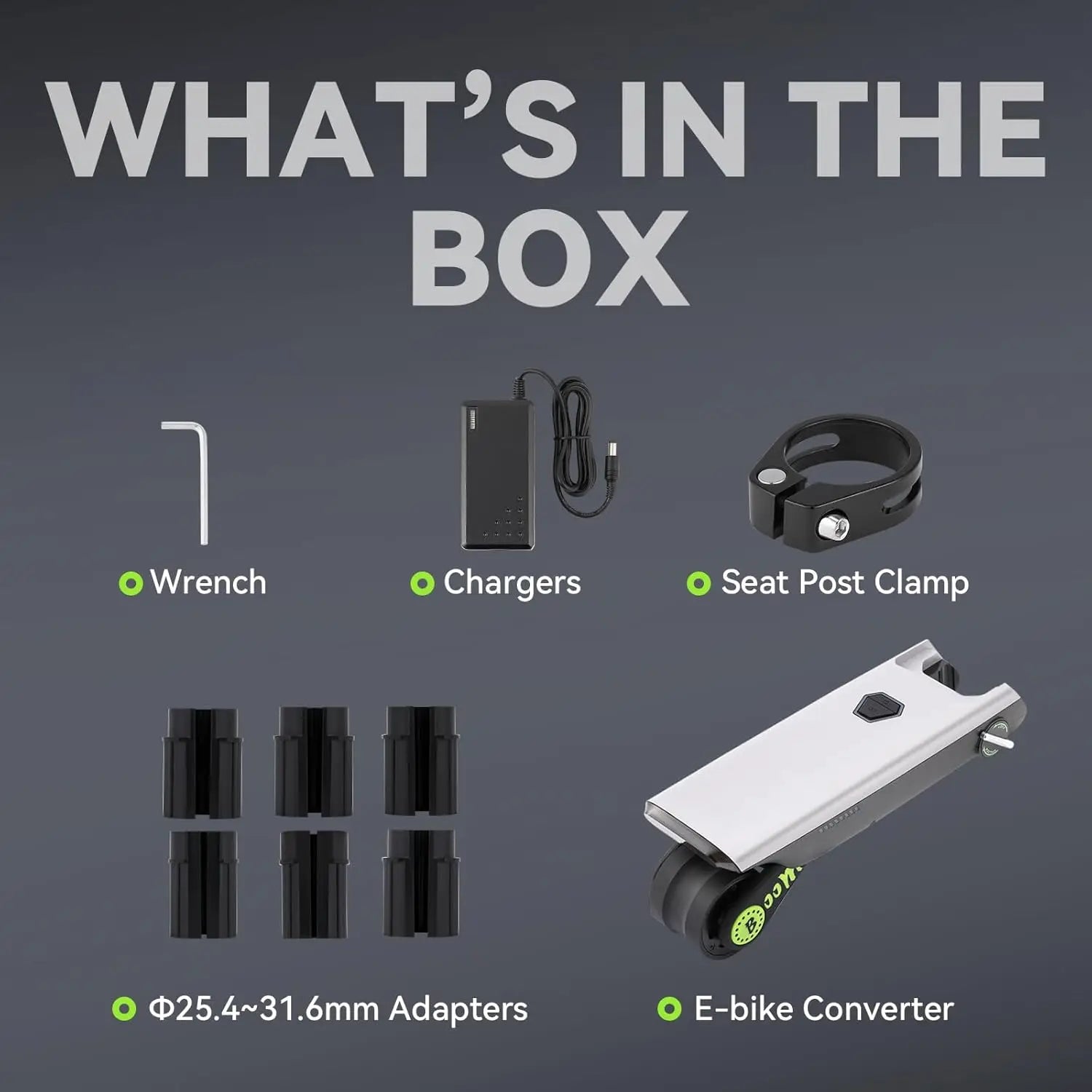

A2: No, the installation is very simple, use the hex bar wrench provided, no professional skills are required, install it in a few minutes.

Q3, What kind of bikes can the product be installed on?

A3, It can support most common bicycles.

Q4, Does the bicycle assist device affect the stability of the bicycle?

A4, No, the product is designed to be compact and will not compromise the stability during cycling.

Q5, If the battery dies, what should I do?

A5, The bike assist is removable, so the bike can be used as a normal bike even if the battery is out.

Basic parameters:

Packaging size: 370mm X 180mm X 128mm

Product size: 305mm X 100mm X 117mm

Battery: 18V 10AH

Click power: 200W

Maximum speed: 25kmh

Range: 50km

Charging time: 5 hours

Charger: 100-230V; 21V2A

Suitable for road surfaces: urban paved roads, gravel roads

Suitable tire width:

Mountain bikes: 1.5/1.75/1.95/2.15 inches

Road vehicles: 25C/28C/35C/38C

Suitable seat pole size: 25.4/27.2/28.6/30.4/30.8/31.6 mm

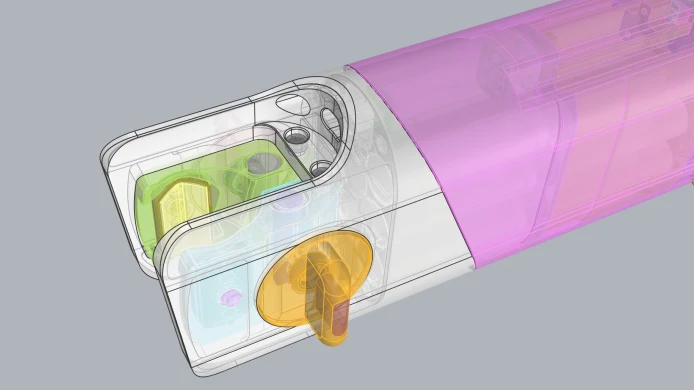

Our team has put a lot of effort into making the Pwheel ride-ability on all terrains better. These include integrating a self-locking mechanism to avoid loosening due to vibration, and an elastic mechanism to avoid minor laxity that could cause the product to fall off.

More Advanced Sensors

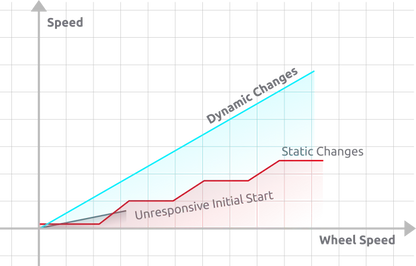

Almost all other products of conversion kits on the market commonly use switch Hall sensors, because it’s much easier to develop and have better versatility. The disadvantage is that it requires cyclists to pedal several cycles to calculate an average speed, and then transfer the speed data to the MCU (microcontroller Unit) for motor power adjustment. In consequence, the response of the motor to the change of speed will be delayed and causes an unpleasant riding experience.

Pwheel uses a two-axis linear Hall sensor. Although the development is more complex, it can detect the speed of the wheel in real-time, thus providing the MCU with the most timely speed data feedback, so as to obtain real-time motor power adjustment, making the speed matching in cycling more smooth.

In addition, with this kind of sensor, users do not need to install an additional set of sensors at the crank to obtain signals.

Exclusive Intelligent Attitude Algorithm

With the built-in two axis linear Hall sensor, Gyroscope, accelerometer and PikaBoost's exclusive attitude algorithm, under the control of MCU, Pwheel can detect the speed and attitude of the bicycle in real time, judge whether it is cycling uphill, downhill or on the flat road, and whether there is a trend of acceleration or deceleration, and dynamically adjust the output power of the motor for speed matching, so as to provide a smooth transition when the speed changes or keep the bike at a constant riding speed.
