SPECIFICATIONS

Brand Name: PFVFNY

High-concerned chemical: None

Model Number: 18650

Nominal Capacity: 20AH30AH

Origin: Mainland China

Rated Voltage: 220

Rated voltage: 220,36V

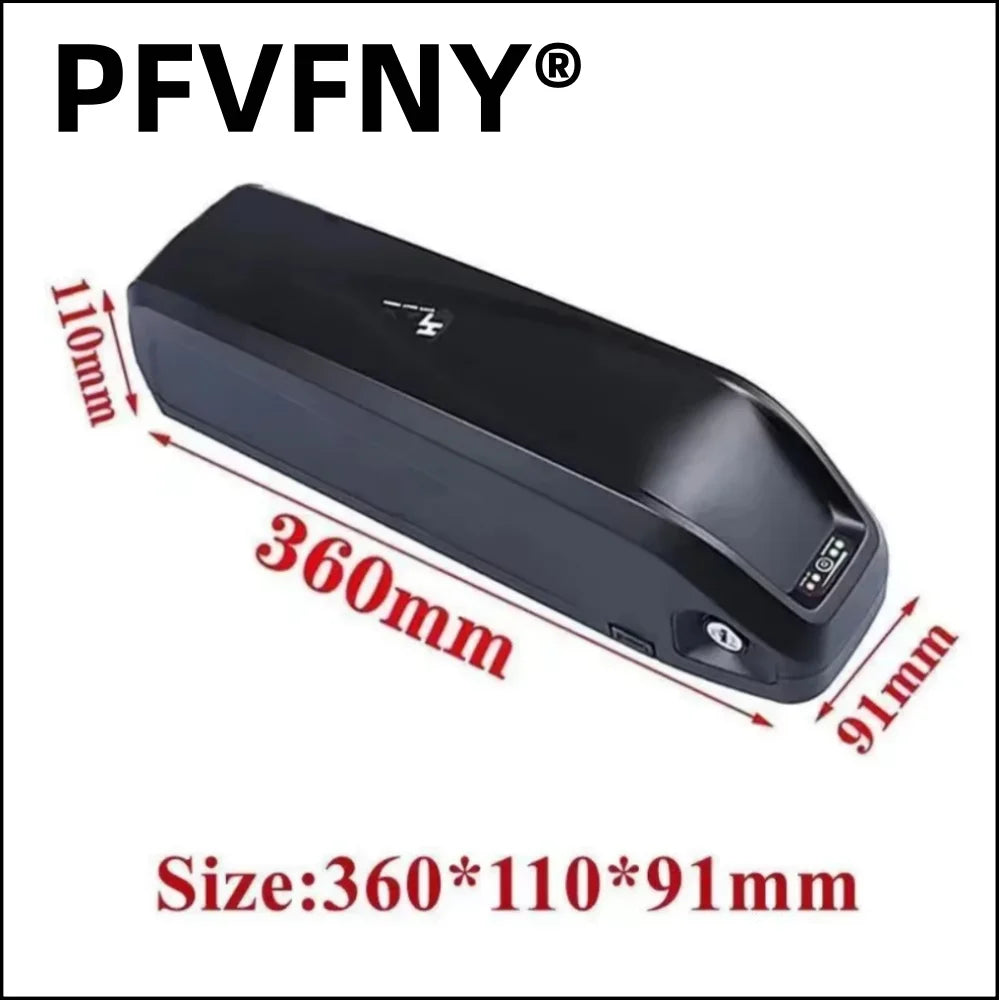

Size: 365*110*90mm

Type: Li-Ion

Voltage: 36V-48V-52V

Weight: 3kg

Dear friend, welcome to my store

Kind reminder:

Please note: If you purchase a battery, the charger will be given as a gift. The default charger plug is 220V EU plug. If you need other specifications, please leave a message or private message to customer service.

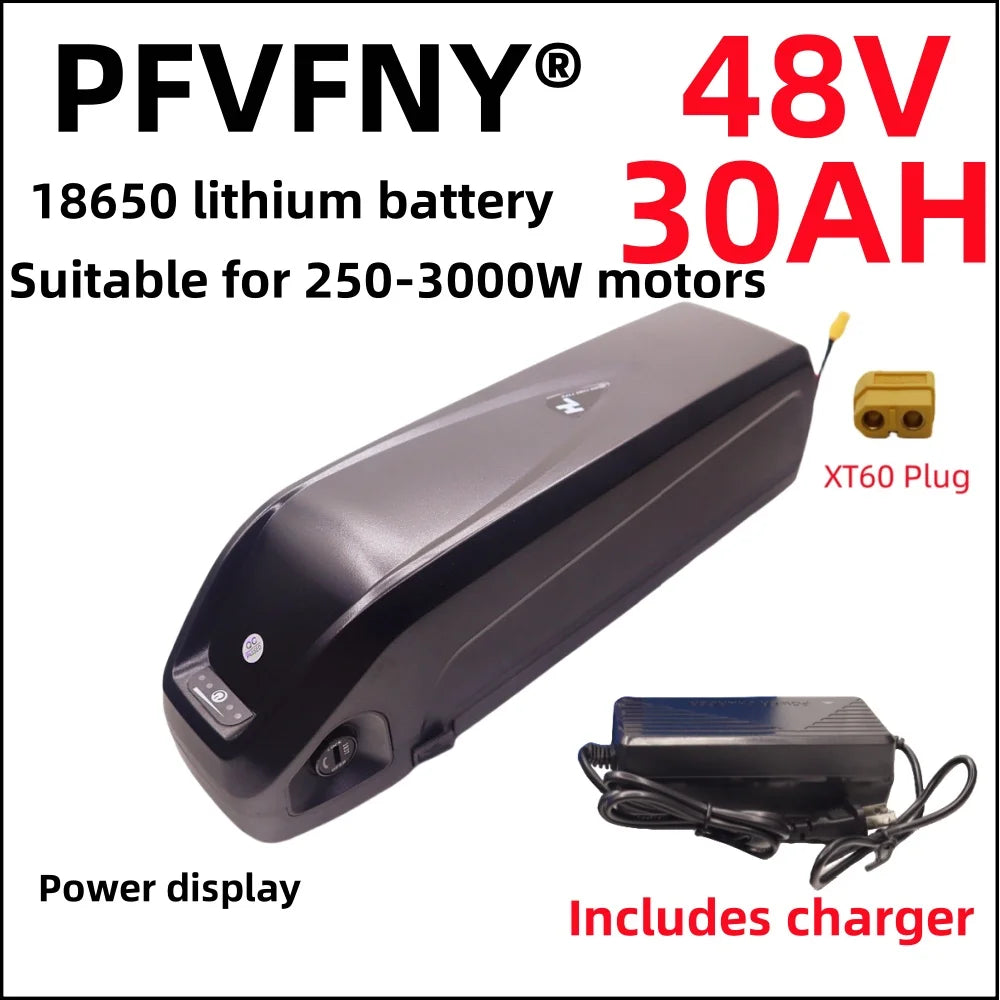

The battery is suitable for 250-3000W motors

Tracking logistics time:

Approximately 15-30 days in European countries

Approximately 15-25 days in the United States

Germany will take approximately 15-25 days

Approximately 20-30 days in the UK

Approximately 15-25 days in Canada

Approximately 25-35 days in the Russian Federation

Belarus will take approximately 25-35 days

About 15-25 days in South Korea

Approximately 15-25 days in Chile

Approximately 15-25 days in New Zealand

Approximately 25-35 days in Australia

Thailand will take approximately 15-25 days

About 10-20 days in Malaysia

About 10-20 days in Singapore

Approximately 10-20 days in the Philippines

Approximately 20-35 days in Mexico

Kind reminder: The transportation time for the above-mentioned countries is approximate. In special circumstances, delays may occur (customs clearance, waiting for flights, weather, customs inspections, etc.)

feature

1. Battery: A-grade battery, ensuring high capacity and full capacity

2. Protection: Dual IC chip, capable of both anti clock and anti clock functions,

Overcurrent protection

3. Ingredient type: More stable towel battery injection technology.

4 Certification: EC RoHS

5. Long lifespan, no memory, environmentally friendly.

36V20AH Specification:

Normal voltage: 36V

Rated capacity: 20Ah

Matrix mode: 10S5P

Battery size: 367.2x90.1x111mm

Battery weight: 3.3kg

Maximum constant current discharge: 25A

Maximum current: 60A

Charging voltage: 42V

Discharge cut-off voltage: 28V

Charging method: CC/CV

Life cycle: 1000 TIMS

Charging temperature: -15-65

Discharge temperature: -15-65

Protection functions: overload, over discharge, over current, short circuit, balance

36V 30Ah Specification:

Normal voltage: 36V

Rated capacity: 30Ah

Battery: Built in Sumsung Ir 18650 33G.60

Matrix mode: 10S6P

Battery size: 367.2x90.1x111mm

Battery weight: 3.6kg

Maximum constant current discharge: 25A

Maximum current: 60A

Charging voltage: 42V

Discharge cut-off voltage: 28V

Charging method: CC/CV

Life cycle: 1000 TIMS

Charging temperature: -15-65

Discharge temperature: -15-65

Protection functions: overload, over discharge, over current, short circuit, balance

48V 20AH Specification:

Normal voltage: 48V

Rated capacity: 20Ah

Battery: Built in Sumsung Ir 18650 33G.52

Matrix mode: 13S4P

Battery size: 367.2x90.1x111mm

Battery weight: 3.4kg

Maximum constant current discharge: 25A

Maximum current: 60A

Charging voltage: 54.6 V

Discharge cut-off voltage: 36.4 V

Charging method: CC/CV

Service life: 1000 times

Charging temperature: -15-65

Discharge temperature: -15-65

Protection functions: overload, over discharge, over current, short circuit, balance

48V 30AH Specification:

Normal voltage: 48V

Rated capacity: 30Ah

Battery: Built in Sumsung Ir 18650 33G.65PCS

Matrix mode: 13S5P

Battery size: 367.2x90.1x111mm

Battery weight: 3.7kg

Maximum constant current discharge: 25A

Maximum current: 60A

Charging voltage: 54.6 V

Discharge cut-off voltage: 36.4 V

Charging method: CC/CV

Service life: 1000 times

Charging temperature: -15-65

Discharge temperature: -15-65

Protection functions: overload, over discharge, over current, short circuit, balance

Dear, welcome to our store. We specialize in the production and sales of chargers and batteries. Please carefully check all product parameters. If you have any questions, please feel free to consult our staff. Thank you for your attention and support. We wish you a happy life
